Pulpmold

Technology

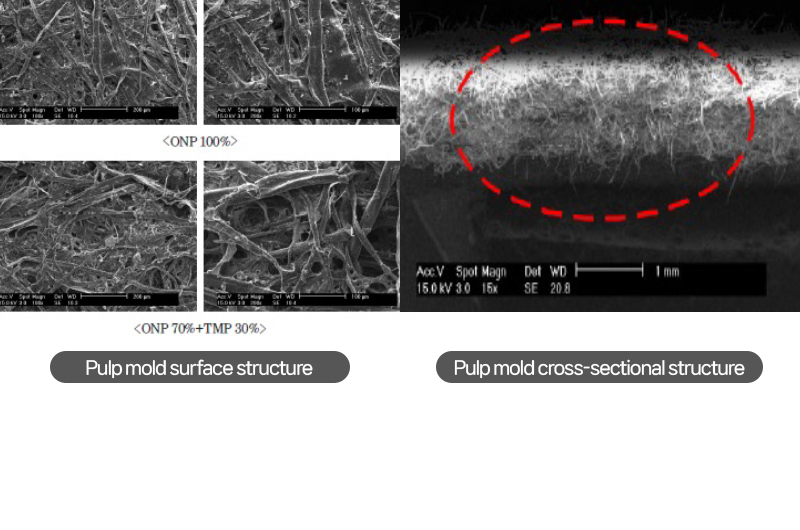

Pulp mold is a molding technology made by dissolving wood pulp, waste paper, sugarcane, etc., in water, using molds for vacuum suction molding, and drying them. Pulp mold has outstanding air permeability, insulation, and stability, and its shape and color are customizable for customer needs. Compared to plastic film-based paper cups, the pulp mold is an eco-friendly technology that can be recycled as paper without emitting environmentally harmful substances when incinerated or landfilled. Pulp mold is an alternative to styrofoam and plastic, which are strongly regulated around the world, and it already melted into lives of people in Europe.

NC-1001
NQ-1001

NC-1001

Power Air Water Dimension Nozzle line Drying method Production time per unit Average production per day (8hours) Number of workers Raw materials (Coating Solution) Number of inputs

3Phase, AC220V, 50/60HZ combined use, 25Kw, 70A 2000L/min (0.5Mpa) 6π 1,820mm X 3,820mm X 1,980mm 1 Hot air 7s 4,000 0.5 N-101, N-102 200

NQ-1001

Power Air Water Dimension Color Nozzle line Drying method Production time per unit Average production per day (8hours) Number of workers Raw materials (Coating Solution) Number of inputs

3Phase, AC208V, 50/60HZ combined use, 75A 4-5 kg f / cm², 12π 6π 1,900mm X 5,969mm X 1,900mm EX8816(S)-PALEBEIGE Ivory (KCC) 1 IR 5.8s 5,000 0.5 N-101, N-103 300

Recipes for the separation and

mixture of natural materials

The abandoned natural materials, including citrus extraction remnant, rice hull, beer and baekseju remnant, green tea remnant, and food by-product can be collected for free to make pulp molds. Many agricultural by-products are illegally incinerated or landfilled without disposing, and this leads to environmental destruction, such as particulate matter and forest fire. NANU collects abandoned natural materials for free to reduce the use of pulp mold, deliver the characteristics of natural materials, and increase bulk and water resistance. Extracts can be mixed with existing wood pulp to reduce the use of pulp mold, deliver the characteristics of natural materials, and increase bulk and water resistance. All pulp molds are made by extracting natural materials, and they are fully biodegradable

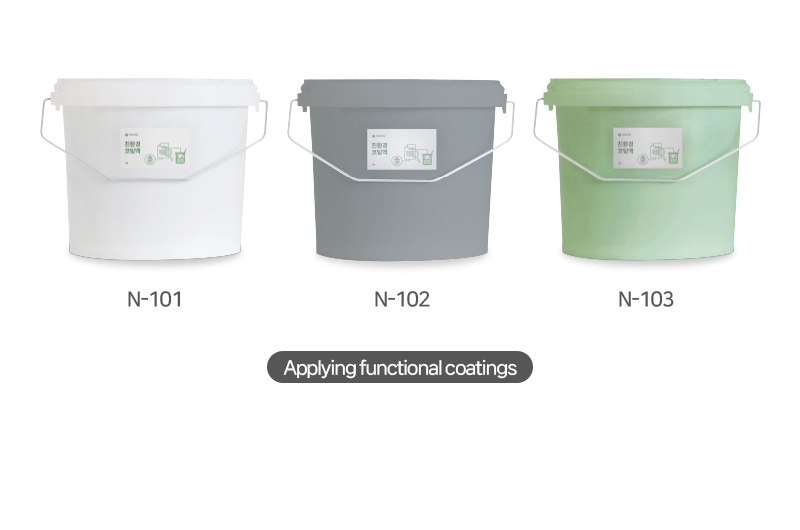

Eco-friendly coating

spray technology

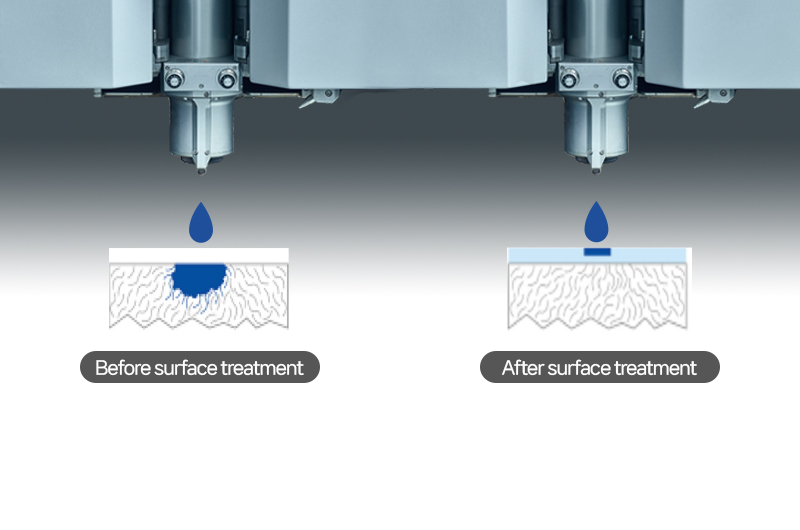

Spraying an eco-friendly coating solution onto natural material pulp molds can enhance packaging quality. The eco-friendly coating solution spraying technique is the original patented technique by NANU, and it controls concentration and viscosity locally to express characteristics elaborately for each surface. It also creates a pump mold that goes beyond food industry containers and expands to various industrial fields, including cosmetics, electronics, and construction.
